德標法蘭球閥

  • 產品詳情

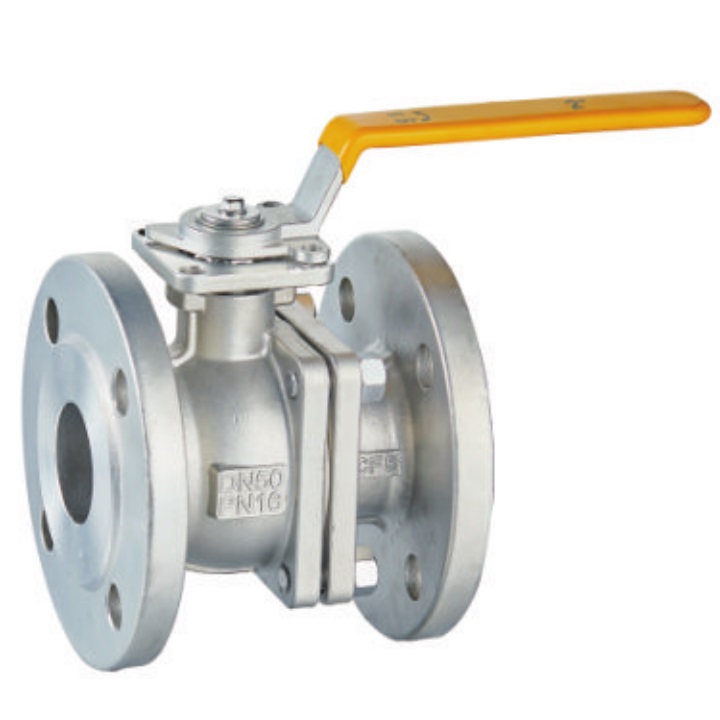

  • DIN Flange Ball Valve Full bore Stainless Steel .jpg

  • Q41F德標法蘭球閥 產品說明

  • 產品型號:Q41F

  • 公稱通徑:DN15~DN250

  • 公稱壓力:PN10-PN40

  • 適用溫度:-29~180oC~550oC

  • 閥體材質:鑄鐵、鑄鋼、不銹鋼

  • 適用介質:水、油、氣體、液體

  • 結構形式:球形

  • 連接方式:法蘭

  • 驅動方式:手動、電動、氣動

  • 制造標準:國標GB、德國DIN、美國API、ANSI


  Q41F德標法蘭球閥用于截斷或接通管路中的介質,選用不同的材質,可分別適用于水、蒸汽、油品、液化氣、天然氣、煤氣、硝酸、醋酸、氧化性介質、尿素等多種介質。德標法蘭球閥具有很小的轉動力矩就能關閉嚴密。完全平等的閥體內腔為介質提供了阻力很小、直通的流道。德標法蘭球閥的主要特點是本身結構緊湊,易于操作和維修,適用于水、溶劑、酸和天然氣等一般工作介質,而且還適用于工作條件惡劣的介質,如氧氣過氧化氫、甲烷和乙烯等。


  • Q41F德標法蘭球閥 產品標準

 設計標準Design: DIN 3357 EN 12516-1

 壁厚標準Wall Thickness: ASME B16.34 EN 12516-1
 防火標準Fire Safe: API 307 ISO 10497
 結構長度Face to Face: DIN 3202
 法蘭標準End Flange: DIN EN 1092-1
 檢測標準/Inspection & Testing: DIN 3230 EN 12266


  • Q41F德標法蘭球閥 產品特點

 閥桿帶有防靜電設置 Ante-Static Devices For Ball-Stem-Body
 閥桿帶有防脫出裝置設計 Blow-out Proof stem
 鋼球球槽上有泄壓孔設計 Pressure Balance Hole in Ball Slot
 采用Iso 5211 支架安裝執行器平臺設計
 Built in ISO 5211 Bracket Mount For Easy Automation


  • Q41F德標法蘭球閥 主要材料表

名稱材質
ANSI/JIS/DINANSI/JIS/DINANSI/JIS/DIN
閥體A351-CF8M/SCS14A/1.4408A351-CF8/SCS13A/1.4308A216-WCB/SCPH2/1.0619
閥蓋A351-CF8M/SCS14A/1.4408A351-CF8/SCS13A/1.4308A216-WCB/SCPH2/1.0619
SUS316 SUS304
六角螺母A194-8
彈性墊片SUS304
密封圈PTFE/VITON
閥座PTFE/RPTFE/PPL
閥桿SUS316 SUS304
O型圈FKM(VITON)
止推墊PTFE/RPTFE
填料PTFE/GRAFOIL
蝶簧SUS304
閥桿螺母A194-8
填料壓蓋SUS304
手柄SUS201
定位桿SUS304
內六角圓柱頭螺釘SUS304
六角螺母A194-8
雙頭螺栓 A193-B8


  • Q41F德標法蘭球閥 外形結構圖

 Q41F德標法蘭球閥(圖1)


  • Q41F德標法蘭球閥 外形尺寸表

SizePNdLRCDHH1EFT□P? A?BN?XISO 5211
DN1510-4015115456595783415021411424414F04
DN2010-40201205875105803515021611424414F04
DN2510-40251256885115884515021611424414F04
DN3210-4032130781001401005017021614505418F05
DN4010-4038140881101501226023031617706418F07
DN5010-40501501021251651306823031817706418F07
DN6510-16651701221451851488623031817706418F07
DN8010-167818013816020016796305320221028818F10
DN10010-16100190158180220188117305320221028818F10
DN12510-161253251882102502461415003222212510818F12
DN15010-161503502122402852881726503222712510822F12
DN20010-1620040026829534032921385032427125101222F12
DN25010-16250450320355405396255140032636140141226F14


TAG:球閥、德標球閥
?
